What Actually Makes Insulated Bottles Keep Stuff Hot or Cold? (Part 3)
Stories live in cups, warmth dwells in life. Hello everyone, welcome to "Dong Dong's Cup Talk". I have covered the key factors governing heat and cold retention of insulated bottles in many previous articles. Given the large volume of my published content — thousands of posts in total — those earlier pieces may be hard for readers to locate. https://www.umbottle.com/ProductsDetail-VB-10547.htmlToday, I will revisit this topic from a more comprehensive perspective to unpack what truly dictates how long insulated bottles keep liquids hot or cold.
As there is a great deal to cover, I will split this content into multiple installments. If you find this guide helpful for selecting your insulated bottle, https://www.umbottle.com/ProductsDetail-VB-10547.htmlplease give me a thumbs up. Follow me for more bottle related insights; your support means a lot.
Why do two insulated bottles that look identical and list identical specifications perform so differently? One reliably keeps water hot for 12 hours, while the other turns completely cold in half a day.
Here is another puzzling observation shared by many users: no matter how expensive an insulated bottle is, its cold retention performance is always better than its heat retention performance. https://www.umbottle.com/ProductsDetail-VB-10547.htmlMerchants rarely mention this fact, leading many consumers to assume their bottle is defective.
Nine Core Factors That Determine Heat Retention and Cold Retention Duration
Heat loss from insulated bottles occurs in three forms: thermal conduction, thermal convection and thermal radiation. https://www.umbottle.com/ProductsDetail-VB-10547.htmlAll differences in thermal performance stem from the following nine controllable variables, each supported by real world test data and practical cases.
1. Bottle Capacity: Water Heat Capacity Sets the Baseline for Temperature Drop
Core principle: With identical bottle craftsmanship, structure and ambient conditions, a larger bottle holds more thermal and cold energy within its water content, https://www.umbottle.com/ProductsDetail-VB-10547.htmldelivering greater thermal inertia and slower temperature change. Simply put: the more water inside, the more stable the temperature remains.
Actual test data: Tested statically at 20 ℃ ambient temperature with identical narrow mouth inner plug design, 316 stainless steel material and vacuum processing. 300 ml small bottle: 58 ℃ after 6 hours 500 ml standard bottle: 65 ℃ after 6 hours 1000 ml large capacity bottle: 72 ℃ after 6 hours
After 12 hours of static storage, https://www.umbottle.com/ProductsDetail-VB-10547.htmlthe temperature gap between large capacity and small capacity bottles can reach 10 ℃ 15 ℃.
Real life example: Compact 300 ml insulated bottles commonly used by schoolchildren will show obvious temperature drops after six hours, even from premium well known brands. By contrast, https://www.umbottle.com/ProductsDetail-VB-10547.html1000 ml outdoor grade insulated bottles easily stay warm for 12 hours. This comes down to physical heat capacity differences, not product quality.

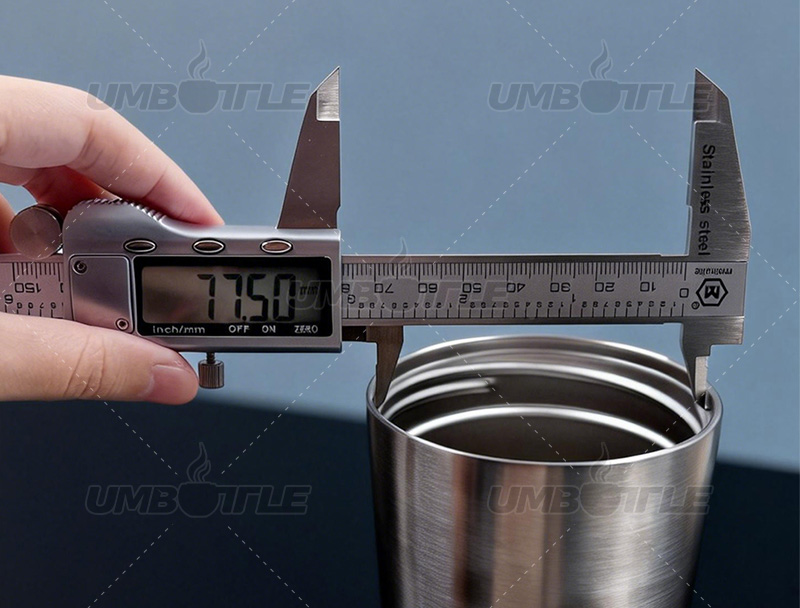

2. Mouth Diameter: The Biggest Heat Leak Weak Point of Insulated Bottles
Core principle: The bottle mouth is the only welded joint connecting the inner and outer liners, forming a dedicated thermal bridge. https://www.umbottle.com/ProductsDetail-VB-10547.htmlA larger inner mouth diameter expands metal heat transfer area and air convection heat loss area, multiplying heat dissipation. It is the primary heat loss point across the whole bottle.
Precision test comparison: Same 500 ml capacity, identical material and vacuum craftsmanship. 36 mm standard narrow mouth versus 55 mm wide mouth, tested under national standard static conditions. https://www.umbottle.com/ProductsDetail-VB-10547.htmlA 12 ℃ temperature difference appears after 6 hours, rising to as much as 18 ℃ after 12 hours.
Practical case: Trending tumblers and wide mouth sports direct drink bottles look attractive and are easy to drink from. Yet even with top tier vacuum technology, their heat retention duration is only 60 % of traditional narrow mouth insulated bottles. https://www.umbottle.com/ProductsDetail-VB-10547.htmlThis is an inherent physical structure limitation that no brand or manufacturing process can completely eliminate.
